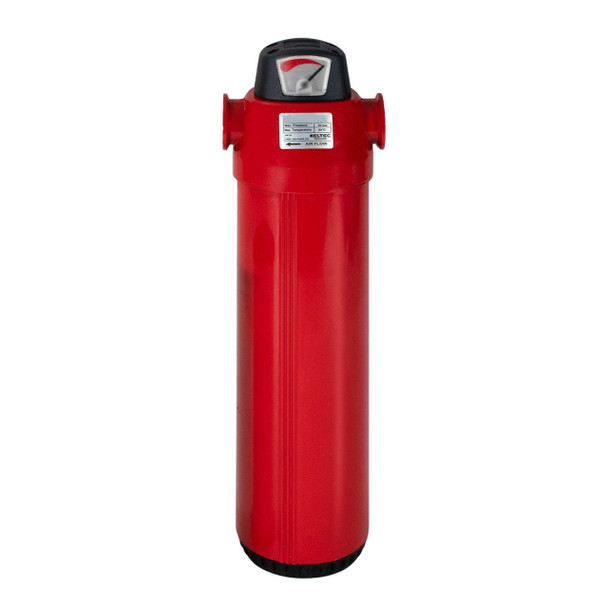

Keltec CAH-0353-NPT 1-1/2" Compressed Air Filter Housing - 353 SCFM

(No reviews yet) Write a Review
SKU:
CAH-0353-NPT
MPN:
CAH-0353-NPT
Availability:
Typically in Stock
  • Keltec Technolab CAH-0353-NPT 1-1/2" Compressed Air Filter Housing - 353 SCFM
  • Compressed Air Filter Elements for Keltec CAH Filter Housing
  • Keltec CAH-ADMD auto manual drain included
  • Duplex compressed air filters with optional clamp
Now: $216.00
Was: $274.00
Frequently bought together:

Description

The Keltec CAH-0353-NPT 1-1/2" Compressed Air Filter Housing handles up to 353 SCFM at 100 PSI of compressed air for a wide range of compressed air filtration applications. Compressed air filter element options include 5 micron particulate filters, 1 micron General Purpose filters, 0.1 micron Coalescing filters, and 0.1 micron Activated Carbon fitlers.

  • 1-1/2" Connection Size
  • 353 CFM at 100 PSI
  • Maximum Pressure of 235 PSI
  • Filter Elements available in 0.1, 1.0, and 5 micron efficiency
  • Optional clamp allows for compact Duplex filter configuration
  • Integrated Pop-up Pressure Indicator included as standard
  • Includes CAH-ADMD Auto / Manual Drain (3rd picture)

One filter housing can provide you particulate, coalescing, or absorption filtration capabilities. Keltec-Technloab compressed air filter housings are small in cost and size, but big in filtration efficiency and performance.

FEATURES

Compressed Air Filters are required to filter contamination, moisture, and oil to help keep compressed air lines clean and dry. Keltec coalescing and particulate filter housings offer a rare blend of exceptional performance, proven reliability and uncommon value.

  • Keltec-Technolab compressor filters handle 58 to 1300 CFM at 100 PSI.
  • Connections sizes in 1/2" to 3" NPT.
  • Maximum Pressure of 235 PSI up to 2" connections. 176 PSI max up to 3" connections.
  • Integrated Pressure Indicator and Auto / Manual Drain included as standard.
  • Filter Elements available in 0.1, 1, and 5 micron efficiency.
  • Keltec Coalescing Filters are suitable for all common mineral and synthetic oils.

Notes:

  1. Grade A media (Activated Carbon) is not suited for operation in oil-saturated conditions; typical replacement of grade A filters is maximum six months. Grade A media will not remove Carbon Dioxide Gas or Carbon Monoxide.
  2. Flow rates are based upon standard operating pressure of 100 psi.
