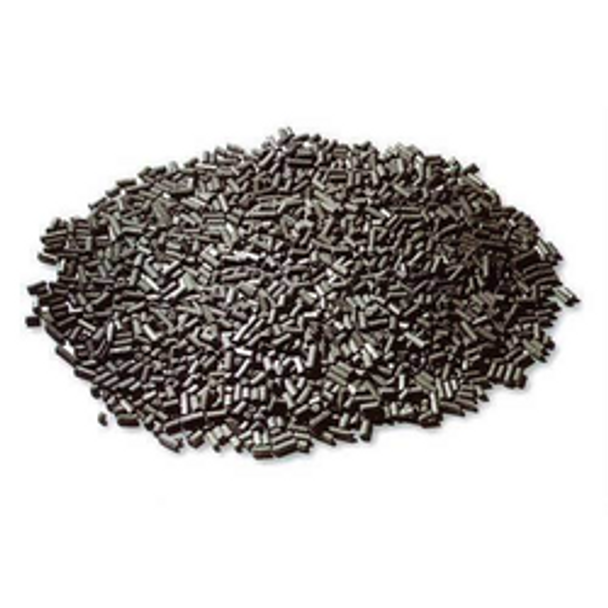

CMS-260 Carbon Molecular Sieve Desiccant 44 lbs. Drum
- SKU:
- CMS-260
- Availability:
- Please confirm availability
Description
Our CMS-260 carbon molecular sieve (CMS) has a higher nitrogen rating than the typical CMS-200 sieve. CMS is a sorbent desiccant developed in the 1970s that has no polarity. The primary purpose of carbon molecular sieve desiccant is to separate nitrogen from air. It has the performance to absorb oxygen in the air under changing pressure of normal temperature, so it can gain rich nitrogen gas. Traditional rich nitrogen in plant air is produced to adopt deep freezing method, that is to make air liquefy under low temperature, separate oxygen and nitrogen through rectification. Its most remarkable characteristic is that N2 has little impurity content, N2 concentration and air current can be adjusted according to the requirements, and can gain high purity N2 with less than 5ppm O2 content and lower than -60 dew point through refine.
General Name | Carbon Molecular Sieve 260 |
Bulk Density | 630 - 660 g / l |
Average Particle Diameter | 1.3 - 1.5 mm |
Crush Strength | ≥85 lbm ft/s2 per piece |
PSA Productivity | |
Nitrogen Purity | ≥99.5 |
Adsorption Pressure | 0.8 Mpa |
Size Qualification | 300NMS / h. Kg |
Productivity for Nitrogen | 260 Nm3/h.T |
Adsorption Cycle | ≥40% |
