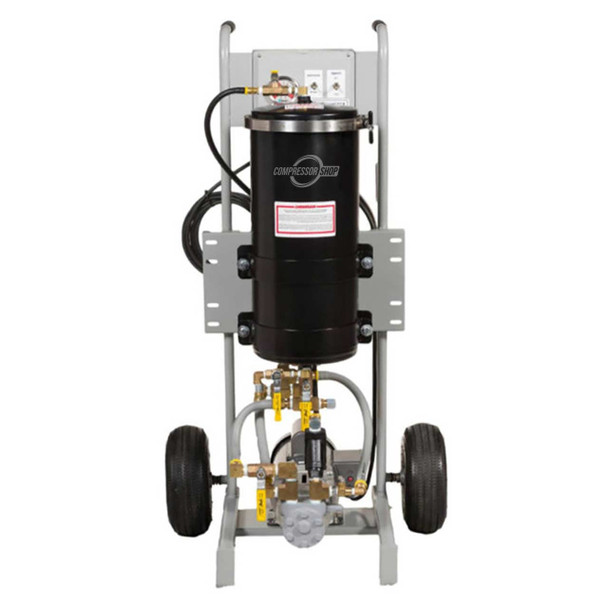

Compressor Shop CS-1205P Portable Filter Cart

Compressor Shop portable filtration system is an ideal filter cart for compressor oil, hydraulic oil and many other fluids. Rated for 180 Gallons per Hour, this portable fluid filter cart has a rugged design and proven longevity.

• 1/2 HP TEFC Heavy Duty Motor with Thermal Overload Protection
• 5 GPM Positive Displacement Gear Pump with Internal Relief Valve
• One (1) Polyurethane Powder Baked 51-0001 Element Housings
• Wired 110 Volt, 1 Phase with all electrical components mounted in a NEMA 4 enclosure
• Motorstarter Switch with Automatic / Manual Override Circuit
• Automatic high / low pressure shutdown system for unattended operation
• 1-100 PSI glycerin filled gauge formonitoring system pressure
• Plumbed with all brass fittings and 1/2" industrial hydraulic hose
• 1/2" Inlet and outlet ball valves provided to isolate unit for element change
• Two (2) 15 ft. 1/2" inlet and outlet hydraulic hoses with hose ends
• Fifteen (15) feet of heavy duty 14/3 power cable
• Suction-Wye Strainer to protect pump from large debris
• Heavy duty 10" pneumatic tires
• Filtration capacity of 3 GPM and fluid transfer capacity of 5 GPM
• 46-inch tall X 20-inch wide X 25-inch deep
• 180 pounds | 250 pound shipping weight

The Compressor Shop CS-1205P portable filtration system is ideal for filtering compressor oil, hydraulic oil, quench oil, lubricating oil, turbine oil, gear oil, water based lubricants and more. Shop Portable Filter Carts at Compressor Shop.
