Van Air E101/102-500(*) Filter Replacement - All Grades Except HT

(No reviews yet) Write a Review
SKU:
26-3013
MPN:
26-3013
Availability:
Usually ships in 24 hours
Now: $225.00
Was: $285.00
Frequently bought together:

Description

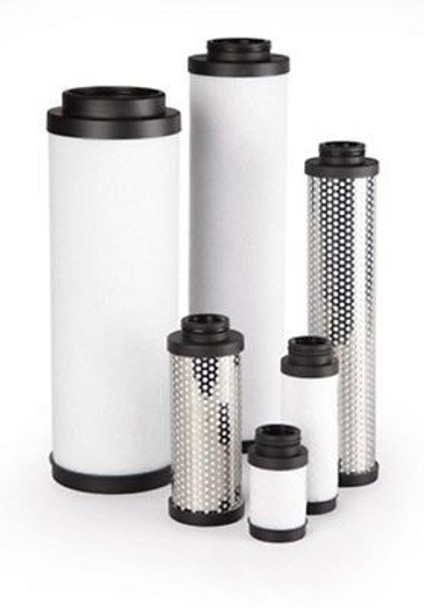

Replacement Filter Element for Van Air F101 / F102 Filter Housings. The (*) asterisk at the end of the part number designates the filtration grade. During checkout please advise the required filtration grade / media in the Notes Section.

Important Guidelines:

Change Element Grades AA, A, B, C, RAA, RA, RB, RC and HT before differential pressure reaches 10 psig.

Change Element Grade RD periodically as the application dictates, but at least once every six months. Note: Grade B and C prefilters required upstream of Grade RD for proper operation.

FILTRATION GRADES

Application Element
Grade 		Purpose Nominal
Particulate
Removal 		Element
Flow
Direction 		End Cap
Color Code
Aerosol
Removal
(Liquids) 		AA Extra Coarse Coalescing 25.0 m IN / OUT Black
A Coarse Coalescing 5.00 m IN / OUT Green
B General Purpose
Coalescing 		1.00 m IN / OUT Red
C High Efficiency
Coalescing 		0.01 m IN / OUT Blue
Solid
Particulate
Removal 		RAA Extra Coarse Coalescing 25.0 m OUT / IN Black
RA Coarse Coalescing 5.00 m OUT / IN Green
RB General Purpose
Coalescing 		1.00 m OUT / IN Red
RC High Efficiency
Coalescing 		0.01 m OUT / IN Blue
HT High Temperature
Particulate 		1.00 m OUT / IN Zinc Plate
or
Galvanized
Oil Vapor
Removal 		RD Vapor Adsorbing 0.01 m OUT / IN Black
Maximum Working Pressure
All Models 250 PSIG
Operating Temperature
Minimum 35? F
Maximum 150? F
Maximum Inlet Temperature
AA, A, RAA, RA, RB, & RC Series 225? F
B Series 175? F
C Series 125? F
RD Series 80? F


View AllClose

Warranty Information

We guarantee our VAN AIR 26-3013 filter replacement will meet or exceed the specifications, performance and warranty of the VAN AIR OEM filter element.
