Nano
Nano NDX 0045 Refrigerated Air Dryer - 45 SCFM
- SKU:
- NDX 0045
- Availability:
- Contact Us for Availability
Frequently bought together:
Description

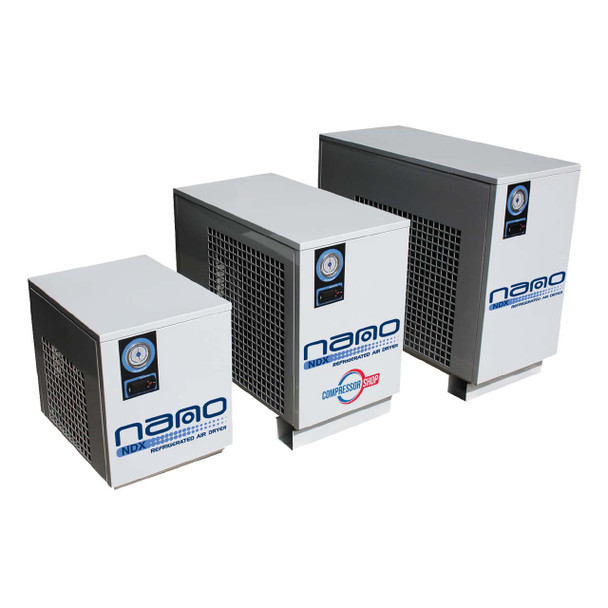

Nano R4 NDX-0045 refrigerated air dryer has 1/2" connections and dries up to 45 SCFM of compressed air. The direct expansion refrigerated compressed air dryer allows those running a consistent volume of compressed air the ability to achieve excellent dew point performance and save energy.
Features:
- Patented large surface area heat exchanger boasts corrosion-resistant construction and an integrated moisture separator
- Simple to use digital microprocessor with dew point monitor and drain operation
- Powder coated galvanized steel panels are corrosion resistant
- TXV ensures stable dew point performance even in changing ambient conditions
- Environmentally friendly R134a or R407C refrigerants
- Timed solenoid
- Small footprint and lightweight
View the NANO R4 NDX 0045 Refrigerated Air Dryer Specifications
SPECIFICATIONS
Additional Information
Flow Rate: |
45 SCFM |
Connection Size: |
1/2" NPT |
Maximum Inlet Temperature: |
158°F |
Size: |
15" x 17" x 18" |
Weight: |
77 Pounds |
Power Supply: |
115/1/60 |
Absorbed Power: |
0.25 kW |
