Description
SP absorbent desiccant, or Special Purpose Desiccant, is a leading deliquescent desiccant formulated primarily for the dehydration of natural gas for use in Gas Pipeline Dryers when the gas temperature is below 90?F. SP is a dense hygroscopic tablet that absorbs water vapor. The surface of the desiccant tablet dissolves slowly, forming a brine solution which drops from the surface. The tablet continuously dissolves, or deliquesces, until the desiccant is fully consumed.
Our deliquescent desiccants, including SP, are non-toxic and fully water soluble.
In a properly sized Gas Pipeline Dryer, SP will establish a relative humidity of 33%, which equates to a dew point approximately 30?F lower than the temperature of the gas at the inlet of the dryer.

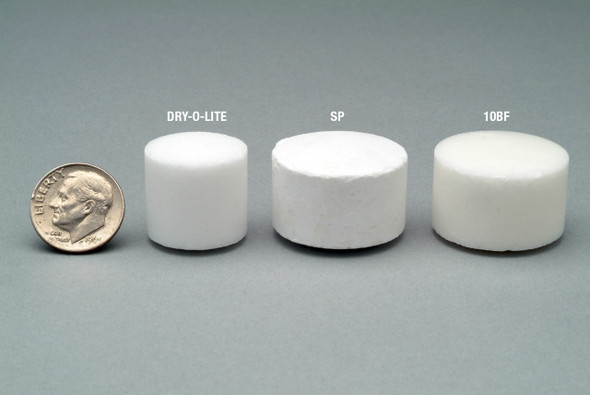

Color and form: White tablet
Size: 1" diameter x 3/4" height
Bulk Density: 55 lbs/cu.ft. +/-3
Average break pressure: 60-100 lbs
Average PH of solution: 6.5 to 7.5
Critical RH: 33%
Inlet Temperature (saturated) | Outlet Dew Point | Dew Point Depression |
---|---|---|
80? F | 50? F | 30? F |
70? F | 43? F | 27? F |
60? F | 36? F | 24? F |
55? F | 32? F | 23? F |
45? F | 25? F | 20? F |
- Requires no energy or fuel
- For operating temperatures 80?F and lower
- Prevents condensation
- Inhibits natural gas hydrate formation
- Can be used indoors or outdoors
- Prevents gas line freeze-ups
- Environmentally safe
- No BTEX emissions
- Available in 45 lb pails, 50 lb bags and 400 lb steel drums
- Drying high pressure, low temperature sales gas
- Fuel gas dehydration
- Instrument gas dehydration
