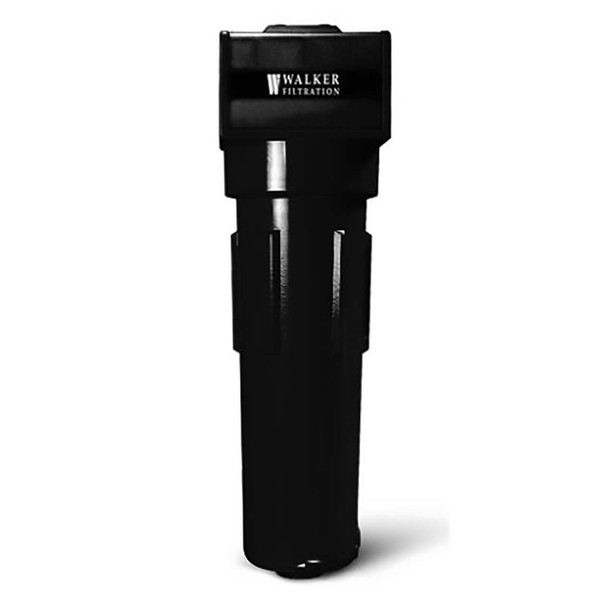

Walker WFH 50HT50 High Temp 1/2" NPT Particulate Filter - 65 SCFM

Walker Filtration WFH Series 50HT50 High Temperature 1/2" NPT dryer dust filter housing is rated for 65 SCFM at 100 PSIG. The Walker WFH particulate filter housing operates up to 450?F and 150 PSIG, and is ideal for removing particulates and desiccant dust after a compressed air dryer or to protect other process equipment.

These high temperature filter housings are manufactured from heavy duty aluminum designed for high temp applications. The filter is painted with a black high temperature podwer paint finish to eliminate corrosion. This aluminum high temperature design offers a significant savings over stainless steel filter housings with quicker delivery.

The high temperature filter elements feature corrosion treated stainless steel endcaps bonded in place with high temperature epoxy resin. A unique Nomex outer sock on the filter element provides course pre-filtration which reduces pressure drop and extends filter element life. Three particulate filter element grades are available with options for 5 micron, 1 micron, 0.01 micron. We typically recommend 1 micron filter elements for installation after a desiccant air dryer. The push-fit style filter elements, with double O-ring seals, make the high temperature 50HT50 filter housing easy to service.

Walker Filtration's unique modular design allows you to upgrade in the future by coupling together particulate and coalescing filters for a solid combo attack at your compressed air particulates and moisture. Reduce costs with aluminum high temperature filter housings and improve your compressed air quality.

View the Walker Filtration WFH High Temperature Compressed Air Filter Specifications
