Description

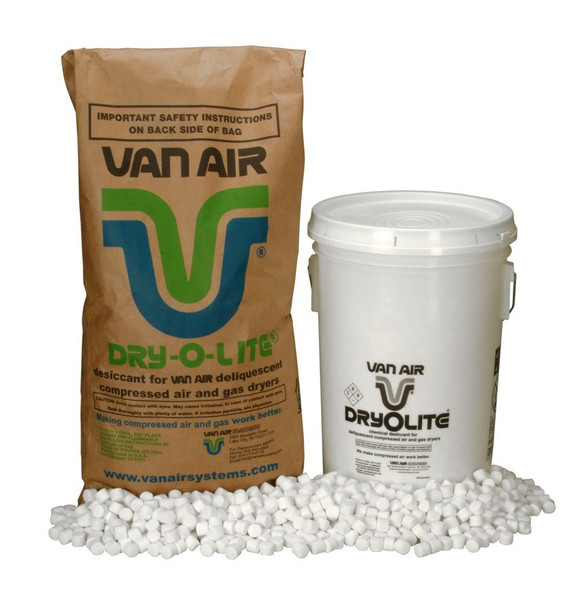

Dry O Lite desiccant ships in 2,000 pound Bulk Bags (Super Sacks). Van Air Systems' Dry-O-Lite is a low-cost absorbent deliquescent desiccant formulated for single and sequential tower dehydration systems. It is a hard tablet formed from hygroscopic materials that attract and hold moisture. The materials in the compound are non-toxic and are completely soluble in water.
Dry-O-Lite™ is the registered trade name of the chemical drying agent specifically formulated for Van Air Freedom Series dryers. The surface of the tablet slowly dissolves and forms a solution which drops from the surface (deliquesces). The deliquescent desiccant tablet continues to remove moisture and forms this solution until the tablet is entirely consumed. Materials in the compound are not toxic or potentially toxic and are completely soluble.
When used in a properly sized single or sequential tower desiccant air dryer, Dry-O-Lite will remove sufficient moisture vapor to establish a 55% RH in the air line.
Dry-O-Lite Desiccant Physical Properties
|
|

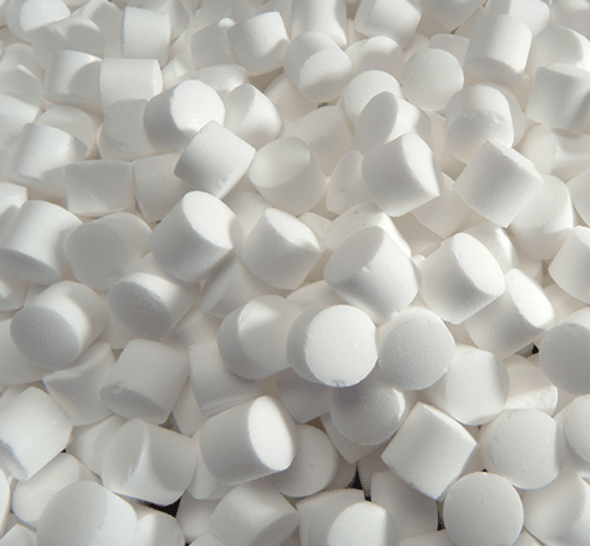

Color and form | White tablet |
Size | 3/4" diameter x 5/8" height |
Bulk Density | 72 +/- 3 lbs/cu.ft. |
Average Break Pressure | 60 - 100 lbs |
Average PH of Solution | 6.5 to 7.5 |
Critical RH | 55% |
Dry O Lite Desiccant Dew Point Performance
|
||
Inlet Temperature (saturated)
|
Outlet Dew Point
|
Dew Point Depression
|
100°F
|
80°F
|
20°F
|
90°F
|
70°F
|
20°F
|
80°F
|
60°F
|
20°F
|
70°F
|
51°F
|
19°F
|
60°F
|
42°F
|
18°F
|
50°F
|
32°F
|
18°F
|
Dry-O-Lite Desiccant Benefits
|
- Long lasting
- Non-caking
- Completely soluble
- Non-toxic desiccant
- Non-hazardous desiccant
