FS-Curtis NXB06 7.5 HP Tankless Rotary Screw Air Compressor

(No reviews yet) Write a Review
SKU:
NXB06
MPN:
FNB06AXXTJXXX

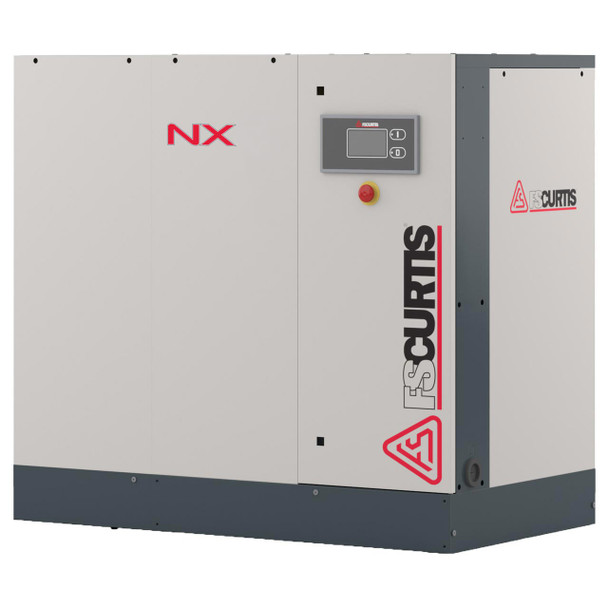

  • FS-Curtis NXB06 7.5 HP tankless rotary screw air compressor
  • nxb06-icommand.jpg
  • FS-Curtis NX rotary screw airend, internal view
  • FS-Curtis NXGen 10-year extended warranty
MSRP: $11,928.00
$9,065.28
— You save $2,862.72
Frequently bought together:

Description

The FS-Curtis NXB06 compressor is a 7.5 HP fixed-speed air-cooled, single-stage, base-mounted (tankless) rotary screw air compressor, built for demanding, continuous-duty industrial air. Rated for 27 CFM at 125 PSI, the NXB06 pairs an exclusive FS-Curtis encapsulated helical twin-screw airend with premium controls and cooling for efficient, reliable shift-after-shift performance.

Backed by more than 170 years of FS-Curtis engineering and a nationwide network of factory-trained service technicians, the NX Series is FS-Curtis' premium rotary screw platform. It is a proven workhorse for manufacturing and assembly, automotive, woodworking, printing, packaging, textiles, laser cutting, and any plant that depends on clean, stable compressed air.

Free Air Delivery (CFM) by Working Pressure

Working Pressure100 PSI125 PSI150 PSI175 PSI
Free Air Delivery (CFM)29272422

Key Features

eCOOL technology: FS-Curtis' exclusive cooling design maximizes airflow through the package, reducing thermal stress and extending the life of motors, bearings, hoses, and seals by up to 30%.

dBA Shield quiet operation: a centrifugal cooling fan, compartmentalized airflow, and thick laminated sound insulation keep the unit quiet enough for installation close to the work area.

Encapsulated helical twin-screw airend: precision-cut rotor profiles maximize efficiency and deliver long, dependable service life.

Premium-efficiency motor: NEMA Premium TEFC (IP55, Class F) motor protects against dust and heat for a long service life under heavy load.

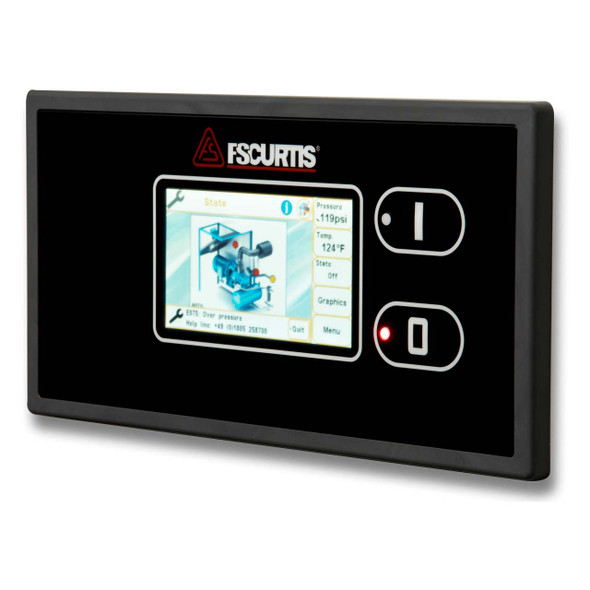

iCommand control: intelligent load / no-load / modulation control with built-in protection and diagnostics; the optional 7-inch iCommand-Touch+ color touchscreen adds trending, graphing, and higher-level communications.

FS-SmartConnect ready: optional IoT monitoring streams live compressor health and energy data to the cloud for around-the-clock visibility.

Full-synthetic lubrication: FSC-Max synthetic fluid on an 8,000-hour change interval with high-efficiency air/oil separation for clean air and long maintenance intervals.

NXGen Extended Warranty: industry-leading coverage of a 10-year airend warranty and 5-year major-components warranty when the machine is registered online and maintained with genuine FS-Curtis parts and FSC-Max lubricants.

Documents & Downloads

Performance Data

Brochure

FAQ

How much air does the NXB06 deliver?

The NXB06 is rated for 27 CFM at 125 PSI, with full free-air-delivery figures of 29 / 27 / 24 / 22 CFM at 100 / 125 / 150 / 175 PSI.

Does the NXB06 include an air tank?

No. The NXB06 is a base-mounted (tankless) unit that feeds an existing receiver or plant air system. If you need storage, choose the NXB06T tank-mounted unit or the NXB06UP UltraPack, which adds a refrigerated dryer and pre-filter.

What controller does the NX use?

Every NX ships with the iCommand controller. The 7-inch iCommand-Touch+ full-color touchscreen is available as an option, adding real-time trending and graphing, USB data export, and higher-level plant communications.

What warranty is included?

The NXGen Extended Warranty provides a 10-year airend warranty and a 5-year major-components warranty when the unit is registered online and maintained with genuine FS-Curtis parts and FSC-Max lubricants.

View AllClose

Additional Information

Type:
Tankless Rotary Screw Compressor
Horsepower:
7.5 HP
Drive:
Fixed Speed
Voltage:
230V (1-Ph) or 208-230/460V (3-Ph)
Phase:
1 or 3 Phase
Flow Rate:
27 CFM
Rated Pressure:
125 PSI
Maximum Operating Pressure:
175 PSIG
Decibels:
67 dBA
Controller:
iCommand (Touch+ optional)
After Cooler:
Yes
Air Dryer:
No
Tank:
No
Tank Volume:
None
Filters:
Yes
Magnetic Starter:
Yes
Oil Sight:
Yes
Discharge Connection:
1/2 in
Weight:
478 lbs
Width:
24 in
Length:
30 in
Height:
38 in
Warranty:
10-Yr Airend / 5-Yr Major (NXGen)
