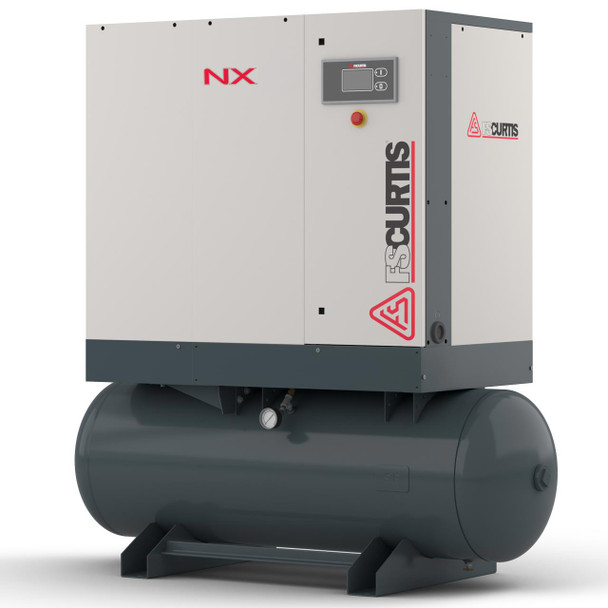

FS-Curtis NXB15UP 20 HP UltraPack Rotary Screw Air Compressor

The FS-Curtis NXB15UP compressor is a 20 HP fixed-speed complete UltraPack system: an air-cooled rotary screw air compressor mounted on an 80-gallon tank with an integrated refrigerated air dryer and particulate pre-filtration, built for demanding, continuous-duty industrial air. Rated for 77 CFM at 125 PSI, the NXB15UP pairs an exclusive FS-Curtis encapsulated helical twin-screw airend with premium controls and cooling for efficient, reliable shift-after-shift performance.

Backed by more than 170 years of FS-Curtis engineering and a nationwide network of factory-trained service technicians, the NX Series is FS-Curtis' premium rotary screw platform. It is a proven workhorse for manufacturing and assembly, automotive, woodworking, printing, packaging, textiles, laser cutting, and any plant that depends on clean, stable compressed air.

A complete, plug-and-play system: the NXB15UP arrives as a compressor, 80-gallon receiver tank, refrigerated dryer, and pre-filter on one skid, so you get clean, dry, regulated air from a single connection with minimal installation.

Free Air Delivery (CFM) by Working Pressure

Key Features

eCOOL technology: FS-Curtis' exclusive cooling design maximizes airflow through the package, reducing thermal stress and extending the life of motors, bearings, hoses, and seals by up to 30%.

dBA Shield quiet operation: a centrifugal cooling fan, compartmentalized airflow, and thick laminated sound insulation keep the unit quiet enough for installation close to the work area.

Encapsulated helical twin-screw airend: precision-cut rotor profiles maximize efficiency and deliver long, dependable service life.

Premium-efficiency motor: NEMA Premium TEFC (IP55, Class F) motor protects against dust and heat for a long service life under heavy load.

iCommand control: intelligent load / no-load / modulation control with built-in protection and diagnostics; the optional 7-inch iCommand-Touch+ color touchscreen adds trending, graphing, and higher-level communications.

FS-SmartConnect ready: optional IoT monitoring streams live compressor health and energy data to the cloud for around-the-clock visibility.

Full-synthetic lubrication: FSC-Max synthetic fluid on an 8,000-hour change interval with high-efficiency air/oil separation for clean air and long maintenance intervals.

Refrigerated dryer and filtration: the built-in dryer and pre-filter remove moisture and particulate for clean, dry compressed air right at the source.

NXGen Extended Warranty: industry-leading coverage of a 10-year airend warranty and 5-year major-components warranty when the machine is registered online and maintained with genuine FS-Curtis parts and FSC-Max lubricants.
