Samuel

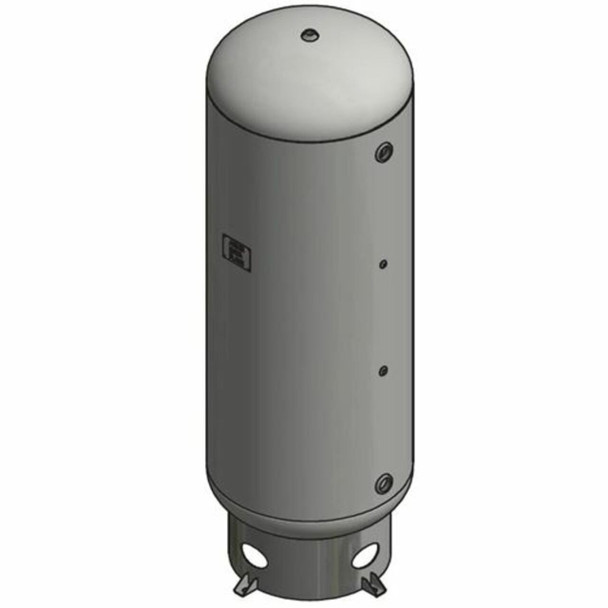

2000 Gallon Vertical Air Receiver Tank - Samuel A10333
(No reviews yet)
Write a Review
- SKU:
- A10333
Frequently bought together:
Description
The Samuel 2,000 Gallon Vertical Air Receiver is a proven workhorse in the compressed air industry. Made in the USA by one of the largest manufacturers of ASME Air Receivers: Samuel / SPVG / Steel Fab.
- Samuel A10333
air receiver tank is 2,000 Gallon and 150 PSI. 60" x 174" and 3,503 pounds.
The standard primer is a universal water based enamel for the A10333 vertical air receiver. We offer optional adders for coatings which adds 2 - 3 weeks to delivery. Please contact us for special options such as FDA Approved Linings and more.
Help your air compressor run smoothly and efficiently with rugged air receiver tank storage for your compressed air system.
View the Samuel Compressed Air Tank Literature
OPTIONS
Samuel / SteelFab offers the following coating options for air receiver tanks.
- Exterior Primer (standard with purchase)
- Powder Interior and Exterior
- Enamel Exterior
- Epoxy Interior
- Premium Galvanized Interior and Exterior
- FDA or NSF Approved Potable Water Interior Lining
Notes:
- Standard primer - universal water based Alkyd enamel
- Powder Coating in following colors only: Gray (RAL 7011), White, Black, Blue (RAL 5015)
- Interior epoxy, where offered: Gray only
- Exterior enamel in following colors: Gray, White, Black, Blue
- FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications.
- Potable water lining NSF approved to Standard 61.
DRAWING
BROCHURE
Additional Information
Capacity: |
2000 Gallons |
Size: |
60" x 174" |
Maximum Pressure: |
150 PSI @ 400F |
Maximum Temperature: |
400F |
Standard Finish: |
Universal Water Based Primer |
ASME: |
Latest Edition of Section VIII DIV 1 ASME Code |
Weight: |
3,503 Pounds |
Includes: |
8" Base Ring |
