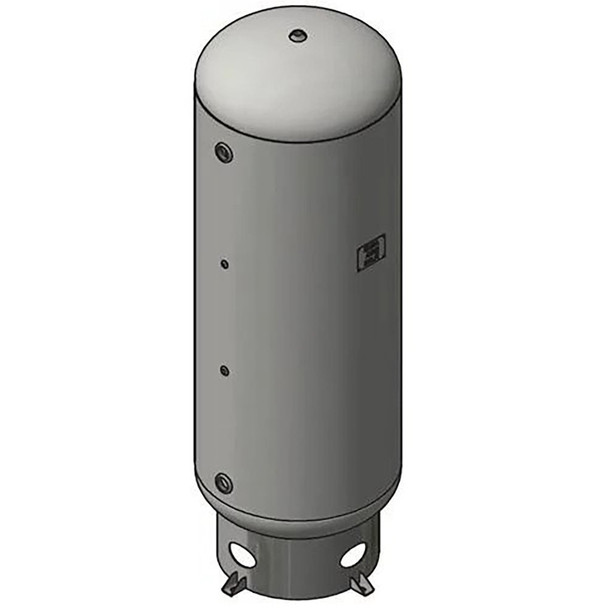

240 Gallon Vertical Air Receiver Tank 300 PSI - Samuel A10053-300
(No reviews yet)
Write a Review
- SKU:
- A10053-300
- MPN:
- 3003553456
Frequently bought together:
Description
The Samuel A10053-300 240 Gallon Vertical Air Receiver is a proven workhorse in the compressed air industry. Made in the USA by one of the largest manufacturers of ASME Air Receivers: Samuel / SPVG / Steel Fab.
- Samuel A10053-300
air receiver tank is 240 Gallons and rated for 300 PSI operation. 30" x 84" and 810 pounds.
The standard primer is a universal water based enamel for this vertical air tank. We offer an optional adders interior and exterior coatings which adds to the lead time.
Help your air compressor run smoothly and efficiently with rugged air receiver tank storage for your compressed air system.
View the Samuel Compressed Air Tank Literature
OPTIONS
Samuel / Steel Fab offers the following coating options for air receiver tanks.
- Exterior Primer (standard with purchase)
- Powder Interior and Exterior
- Enamel Exterior
- Epoxy Interior
- Premium Galvanized Interior and Exterior
- FDA or NSF Approved Potable Water Interior Lining
Notes:
- Standard primer - universal water based Alkyd enamel
- Powder Coating in following colors only: Gray (RAL 7011), White, Black, Blue (RAL 5015)
- Interior epoxy, where offered: Gray only
- Exterior enamel in following colors: Gray, White, Black, Blue
- FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications.
- Potable water lining NSF approved to Standard 61.
DRAWING
BROCHURE
Additional Information
Capacity: |
240 Gallons |
Size: |
30" x 84" |
Maximum Pressure: |
300 PSI @ 400F |
Maximum Temperature: |
400F |
Standard Finish: |
Universal Water Based Primer |
ASME: |
Latest Edition of Section VIII DIV 1 ASME Code |
Weight: |
810 Pounds |
Includes: |
8" Base Ring |
