240 Gallon Vertical Air Receiver Tank - Samuel A10053

(No reviews yet) Write a Review
SKU:
A10053
MPN:
3003553456

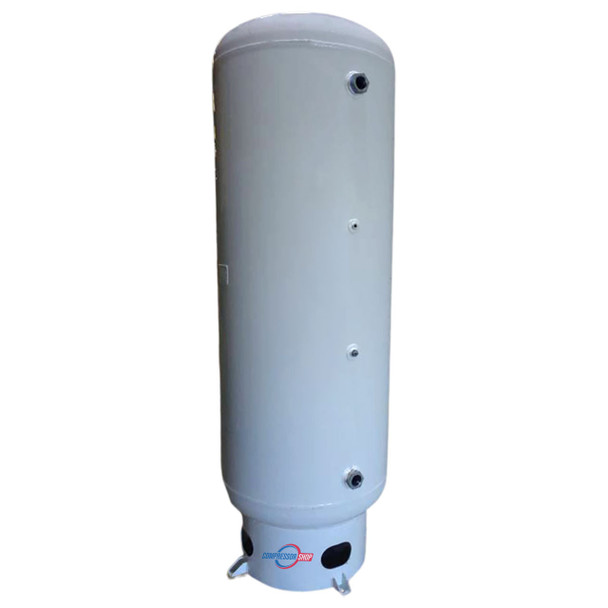

  • Samuel 240 gallon air tank. Samuel Tank A10053 vertical air receiver.
  • A10053 Samuel Tank Vertical Air Receiver - 240 Gallons
Now: $1,870.00
Was: $2,840.00
Frequently bought together:

Description

The Samuel A10053 240 Gallon Vertical Air Receiver is a proven workhorse in the compressed air industry. Made in the USA by one of the largest manufacturers of ASME Air Receivers: Samuel / SPVG / Steel Fab.

  • Samuel A10053 Samuel Air Receiver Tank 240 Gallon Drawing air receiver tank is 240 Gallons and rated for 200 PSI operation. 30" x 84" and 643 pounds.

The standard primer is a universal water based enamel for this vertical air tank. We offer an optional adders interior and exterior coatings which adds to the lead time.

Help your air compressor run smoothly and efficiently with rugged air receiver tank storage for your compressed air system.

Samuel Air Receiver Tank LiteratureView the Samuel Compressed Air Tank Literature

OPTIONS

Compressed Air Receiver TanksSamuel / SteelFab offers the following coating options for air receiver tanks.

  • Exterior Primer (standard with purchase)
  • Powder Interior and Exterior
  • Enamel Exterior
  • Epoxy Interior
  • Premium Galvanized Interior and Exterior
  • FDA or NSF Approved Potable Water Interior Lining

Notes:

  1. Standard primer - universal water based Alkyd enamel
  2. Powder Coating in following colors only: Gray (RAL 7011), White, Black, Blue (RAL 5015)
  3. Interior epoxy, where offered: Gray only
  4. Exterior enamel in following colors: Gray, White, Black, Blue
  5. FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications.
  6. Potable water lining NSF approved to Standard 61.

DRAWING

BROCHURE

View AllClose

Additional Information

Capacity:
240 Gallons
Size:
30" x 84"
Operating Pressure:
200 PSI
Maximum Pressure:
200 PSI @ 400F
Maximum Temperature:
400F
Standard Finish:
Universal Water Based Primer
ASME:
Latest Edition of Section VIII DIV 1 ASME Code
Weight:
643 Pounds
Includes:
8" Base Ring
View AllClose
