660 Gallon Vertical Air Receiver 200 PSI - Samuel C100950-X

(No reviews yet) Write a Review
SKU:
C100950-X
Now: $8,670.00
Was: $13,000.00
Frequently bought together:

Description

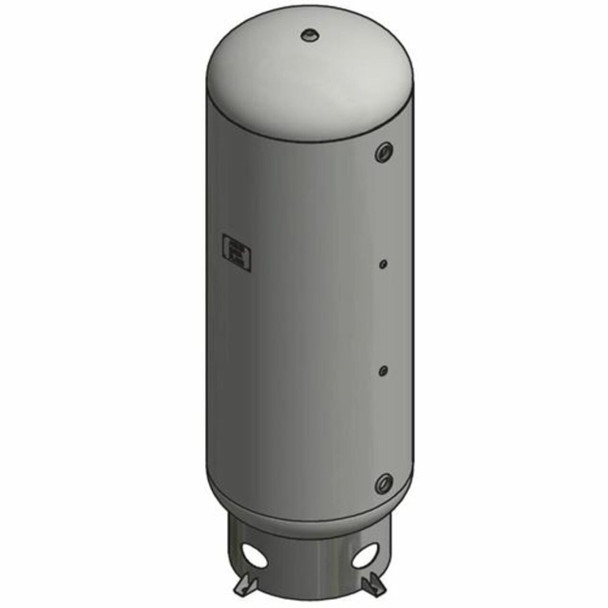

The Samuel C100950-X Vertical Air Receiver is 660 gallons and a proven workhorse in the compressed air industry. Made in the USA by one of the largest manufacturers of ASME Air Receivers: Samuel / SPVG / Steel Fab.

  • Samuel C100950-X Samuel Air Receiver Tank 660 Gallon Drawing air receiver tank is 660 Gallons and rated for 200 PSI operation. 42" x 120" and 1,461 pounds.

The standard primer is a universal water based enamel for the C100950-X vertical air receiver. We offer optional adders for coatings which adds 2 - 3 weeks to delivery. Please contact us for special options such as FDA Approved Linings and more.

Help your air compressor run smoothly and efficiently with rugged air receiver tank storage for your compressed air system.

Samuel Air Receiver Tank LiteratureView the Samuel Compressed Air Tank Literature

OPTIONS

Steel Fab Compressed Air Receiver TanksSamuel / SteelFab offers the following coating options for air receiver tanks.

  • Exterior Primer (standard with purchase)
  • Powder Interior and Exterior
  • Enamel Exterior
  • Epoxy Interior
  • Premium Galvanized Interior and Exterior
  • FDA or NSF Approved Potable Water Interior Lining

Notes:

  1. Standard primer - universal water based Alkyd enamel
  2. Powder Coating in following colors only: Gray (RAL 7011), White, Black, Blue (RAL 5015)
  3. Interior epoxy, where offered: Gray only
  4. Exterior enamel in following colors: Gray, White, Black, Blue
  5. FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications.
  6. Potable water lining NSF approved to Standard 61.

DRAWING

BROCHURE

View AllClose

Additional Information

Capacity:
660 Gallons
Size:
42" x 120"
Operating Pressure:
200 PSI
Maximum Pressure:
200 PSI @ 400F
Maximum Temperature:
400F
Standard Finish:
Universal Water Based Primer
ASME:
Latest Edition of Section VIII DIV 1 ASME Code
Weight:
1,461 Pounds
Includes:
8" Base Ring
