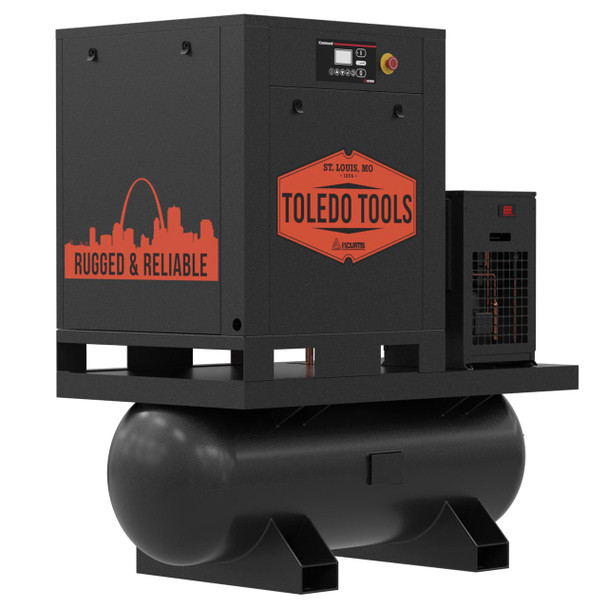

Toledo Tools TT10UP 10 HP UltraPack Rotary Screw Air Compressor

(No reviews yet) Write a Review
SKU:
FTT10UP
MPN:
FTT10B8U3KXXX
MSRP: $15,730.00
$11,954.80
— You save $3,775.20
Frequently bought together:

Description

The Toledo Tools TT10UP compressor is a 10 HP complete UltraPack system: an air-cooled rotary screw compressor mounted on a 71-gallon tank with an integrated refrigerated air dryer and pre / coalescing filtration, engineered by FS-Curtis for demanding industrial duty. Rated for 34.9 CFM at 150 PSI, it delivers stable, continuous-duty shop air and is a rugged, industrial-grade step up from reciprocating and consumer-grade compressors, with quieter operation and far longer service life.

Backed by more than 170 years of FS-Curtis engineering and a nationwide network of factory-trained service technicians, the TT10UP is built for shift-after-shift reliability at an approachable price. It is a proven workhorse for manufacturing and assembly lines, automotive, woodworking, printing, packaging, textiles, and asphalt or concrete operations.

A complete, plug-and-play system: the TT10UP arrives as a compressor, 71-gallon receiver tank, refrigerated dryer, and filter package on one skid, so you get clean, dry, regulated air from a single connection with minimal installation.

Free Air Delivery (CFM) by Working Pressure

Working Pressure125 PSI150 PSI175 PSI
Free Air Delivery (CFM)39.034.930.3

Key Features

Rugged, long-life construction: a large-rotor airend turning at low RPM reduces wear and heat for dependable, long-term operation.

100% continuous duty: rated for around-the-clock industrial use with no duty-cycle limit.

iCommand controller: intuitive load / no-load control between two pressure settings, with built-in protection and diagnostics.

Premium-efficiency motor: NEMA premium TEFC (IP55, Class F) motor built for heavy industrial loads.

Integrated oil separation and filtration: a high-efficiency separator delivers clean air with low residual carryover; a heavy-duty suction filter, oil sight glass, and accessible drain simplify service.

Quiet operation: a sound-attenuated package with centrifugal cooling keeps the noise footprint low on the plant floor.

Refrigerated dryer and filtration: the built-in dryer and filters remove moisture and particulate for clean, dry compressed air right at the source.

Warranty: a 1-year warranty from day one, extendable up to 5 years on the airend through the Toledo Tools Extended Warranty when registered online and maintained with genuine FS-Curtis parts and fluids.

Documents & Downloads

Data Sheet

FAQ

How much air does the TT10UP deliver?

The TT10UP produces 34.9 CFM at 150 PSI (and 39.0 / 34.9 / 30.3 CFM at 125 / 150 / 175 PSI) from its 10 HP airend.

What is included with the TT10UP UltraPack?

Everything for a complete system: the compressor, a 71-gallon receiver tank, an integrated refrigerated air dryer, and pre / coalescing filtration, all on one skid for clean, dry air from a single connection.

What voltage and phase does it require?

It runs on 208-230/460V three-phase power.

Is the TT10UP rated for continuous use?

Yes. Like all Toledo Tools rotary screw compressors, it is built for 100% continuous duty and can run around the clock without a duty-cycle limit.

What warranty is included?

A 1-year warranty from day one, extendable up to 5 years on the airend through the Toledo Tools Extended Warranty when registered online and maintained with genuine FS-Curtis parts and fluids.

View AllClose

Additional Information

Type:
UltraPack Rotary Screw Compressor
Horsepower:
10 HP
Drive:
Fixed Speed
Voltage:
208-230/460V
Phase:
3 Phase
Flow Rate:
34.9 CFM
Rated Pressure:
150 PSI
Maximum Operating Pressure:
175 PSIG
Decibels:
68 dBA
Controller:
iCommand
After Cooler:
Yes
Air Dryer:
Yes
Tank:
Yes
Tank Volume:
71 Gallon
Filters:
Yes
Magnetic Starter:
Yes
Oil Sight:
Yes
Weight:
1287 lbs
Width:
32 in
Length:
59 in
Height:
63 in
Warranty:
5-Yr Airend / 2-Yr Major
