Van Air Systems

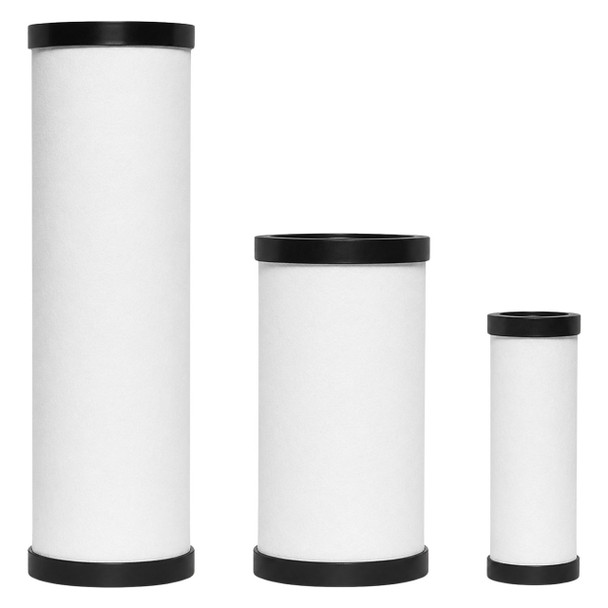

Van Air E200-15/25-RD Filter Element - Vapor Adsorbing
- SKU:
- 26-10408
- MPN:
- 26-10408
Description
Genuine Van Air E200-15/25-RD replacement element for the F200 series filter housing, rated 15 & 25 SCFM at 100 PSIG, 1/4" and 3/8" / 1/2" NPT. Van Air part number 26-10408.
Grade RD is the vapor-adsorbing element. It is an activated carbon bed that strips the oil vapor and odor the coalescing grades leave behind, which is what you need for breathing-quality air, food and beverage lines, and anywhere a customer can smell the compressor in the product.
Grade RD requires a Grade B or C coalescing element upstream. Without one the carbon bed loads with liquid and stops working within days. Replace Grade RD as the application dictates and at least every six months. Differential pressure does not rise as a carbon bed is consumed, so it will not tell you when the element is spent.
Which Housings Take This Element?
| Filter housing | Product | Flow | Connection |
|---|---|---|---|
| F200-15-1/4 | Van Air F200-15-1/4 Compressed Air Filter - 1/4" - 15 CFM | 15 SCFM | 1/4" NPT |
| F200-25-3/8 | Van Air F200-25-3/8 Compressed Air Filter - 3/8" - 25 CFM | 25 SCFM | 3/8" NPT |
| F200-25-1/2 | Van Air F200-25-1/2 Compressed Air Filter - 1/2" - 25 CFM | 25 SCFM | 1/2" NPT |
Filtration Grades
| Application | Grade | Purpose | Nominal removal | Flow direction | End cap color |
|---|---|---|---|---|---|
| Aerosol removal (liquids) | AA | Extra coarse coalescing | 25 µm | IN → OUT | Black |
| A | Coarse coalescing | 5 µm | IN → OUT | Green | |
| B | General purpose coalescing | 1 µm | IN → OUT | Red | |
| C | High efficiency coalescing | 0.01 µm | IN → OUT | Blue | |
| Solid particulate removal | RAA | Extra coarse particulate | 25 µm | OUT → IN | Black |
| RA | Coarse particulate | 5 µm | OUT → IN | Green | |
| RB | General purpose particulate | 1 µm | OUT → IN | Red | |
| RC | High efficiency particulate | 0.01 µm | OUT → IN | Blue | |
| Oil vapor removal | RD | Vapor adsorbing (activated carbon) | 0.01 µm | OUT → IN | Black |
Specifications
| Flow rate | 15 & 25 SCFM at 100 PSIG |
| Connection | 1/4" and 3/8" / 1/2" NPT |
| Maximum working pressure | 250 PSIG |
| Operating temperature | 35°F to 150°F |
| Maximum inlet temperature | 80°F |
| Element weight | 0.1 lb |
| Van Air part number | 26-10408 |
Additional Information
Grade: |
RD - Vapor Adsorbing |
Particle / Aerosol Removal: |
oil vapor and odor |
Element Media: |
activated carbon |
Fits Housings: |
F200-15-1/4, F200-25-3/8, F200-25-1/2 |
Element Reference PN: |
E200-15/25-RD |
Van Air Part Number: |
26-10408 |
Flow Rate: |
15 & 25 SCFM at 100 PSIG |
Connection Size: |
1/4" and 3/8" / 1/2" NPT |
