Van Air Systems

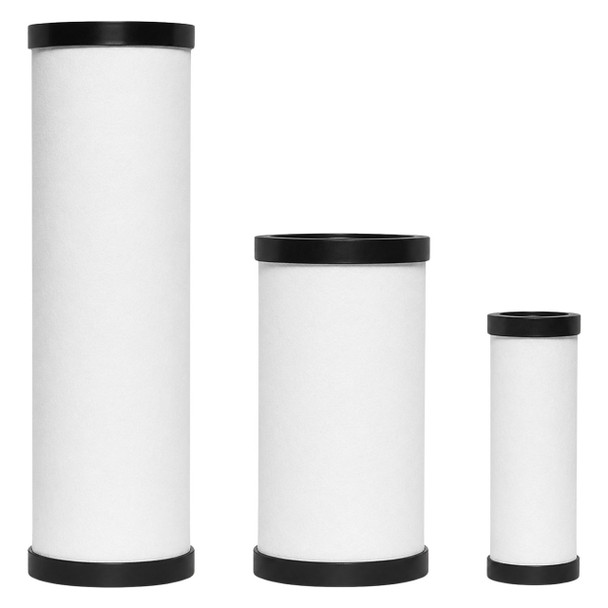

Van Air E200-150-C/RC Filter Element - 0.01 Micron High Efficiency
- SKU:
- 26-2085
- MPN:
- 26-2085
Description
Genuine Van Air E200-150-C/RC replacement element for the F200 series filter housing, rated 150 SCFM at 100 PSIG, 1" NPT. Van Air part number 26-2085.
This is the 0.01 micron high efficiency element, and it is the high efficiency grade for instrument air, paint and critical point-of-use work. One part number covers both designations: fit it as C for coalescing service, where air flows from the inside of the element outward and the coalesced liquid drains off the outer surface, or as RC for particulate service, where air flows from the outside in. Same element, same price. The end cap is blue.
Replace the element before differential pressure reaches 10 psig, or every 12 months, whichever comes first. A blocked element costs more in wasted compressor power than a new one costs to buy.
Which Housings Take This Element?
| Filter housing | Product | Flow | Connection |
|---|---|---|---|
| F200-150-1 | Van Air F200-150-1 Compressed Air Filter - 1" - 150 CFM | 150 SCFM | 1" NPT |
Filtration Grades
| Application | Grade | Purpose | Nominal removal | Flow direction | End cap color |
|---|---|---|---|---|---|
| Aerosol removal (liquids) | AA | Extra coarse coalescing | 25 µm | IN → OUT | Black |
| A | Coarse coalescing | 5 µm | IN → OUT | Green | |
| B | General purpose coalescing | 1 µm | IN → OUT | Red | |
| C | High efficiency coalescing | 0.01 µm | IN → OUT | Blue | |
| Solid particulate removal | RAA | Extra coarse particulate | 25 µm | OUT → IN | Black |
| RA | Coarse particulate | 5 µm | OUT → IN | Green | |
| RB | General purpose particulate | 1 µm | OUT → IN | Red | |
| RC | High efficiency particulate | 0.01 µm | OUT → IN | Blue | |
| Oil vapor removal | RD | Vapor adsorbing (activated carbon) | 0.01 µm | OUT → IN | Black |
Specifications
| Flow rate | 150 SCFM at 100 PSIG |
| Connection | 1" NPT |
| Maximum working pressure | 250 PSIG |
| Operating temperature | 35°F to 150°F |
| Maximum inlet temperature (AA, A, RAA, RA, RB, RC) | 225°F |
| Maximum inlet temperature (Grade B) | 175°F |
| Maximum inlet temperature (Grade C) | 125°F |
| Element weight | 0.9 lb |
| Van Air part number | 26-2085 |
Additional Information
Grade: |
C/RC - 0.01 Micron High Efficiency |
Particle / Aerosol Removal: |
0.01 micron |
Element Media: |
borosilicate glass microfiber |
Fits Housings: |
F200-150-1 |
Element Reference PN: |
E200-150-C/RC |
Van Air Part Number: |
26-2085 |
Flow Rate: |
150 SCFM at 100 PSIG |
Connection Size: |
1" NPT |
