Walker Filtration

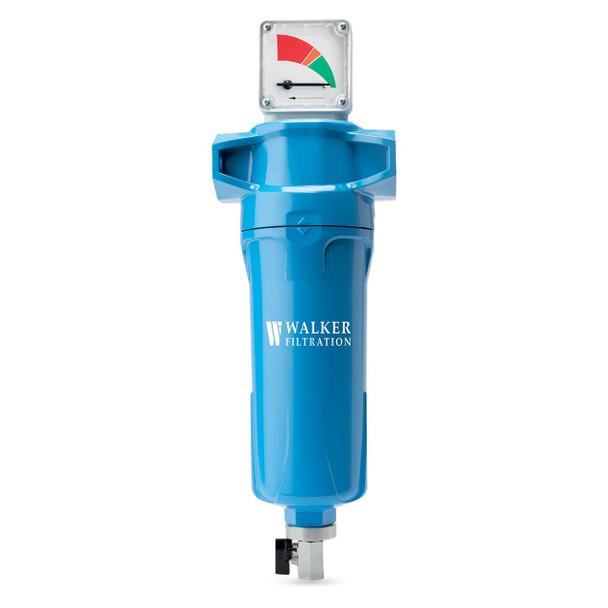

Walker 20HP0050 Alpha 1/2" High Pressure Filter | 300 PSIG | 87 SCFM
- SKU:
- 20HP0050
- Availability:
- Stock to Two Weeks
Description
Walker Filtration 20HP0050 Alpha 1/2" NPT alloy high pressure filter housing is perfect for upstream or downstream of your compressed air or gas dryers. These cast aluminum alloy compressed air filter housings remove up to 99.999% of contamination in your compressed air line. The advanced filter head design is optimized for flow performance and a low pressure drop.
Alpha deep pleated filter element media technology is long lasting and 99.999% efficient when tested in accordance with ISO 12500-3. Four filter element grades are available for removal of contaminants down to 5 micron, 1 micron, 0.01 micron, or an option for activated carbon filter media with 0.01 micron retention. The push-fit style filter elements make the Alpha 20HP0050 compressed air filter easy to service.
Walker Filtration's unique modular design allows you to upgrade in the future by coupling together particulate and coalescing filters for a solid combo attack at your compressed air particulates and moisture. Remove up to 99.999% of contaminants before or after your compressed air dryer without worrying about your pressure drop.
BROCHURE
Additional Information
Connection Size: |
1/2" NPT |
Flow Rate: |
87 SCFM @ 300 PSIG |
Inlet to Outlet: |
2.76" |
Height: |
9.09" |
Weight: |
1.3 lbs |
Filter Element Model: |
E30412 (Grade) |
Includes: |
Pop Up Indicator and MDV25 Manual Drain Valve |
