Walker 20HP0175 Alpha 1" High Pressure Filter | 300 PSIG | 303 SCFM

(No reviews yet) Write a Review
SKU:
20HP0175
Availability:
Stock to Two Weeks

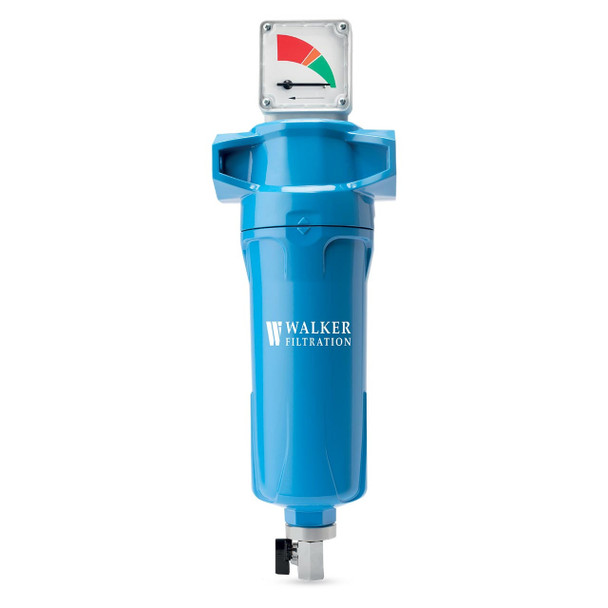

  • Walker Filtration Alpha 20HP0175 1" high pressure filter housing for compressed air and gas
  • Walker Alpha 1" compressed air duplex filters coupled together
  • Internal design and pressure drop indicator of Walker Filtration Alpha high pressure compressed air filter
Now: $608.00
Was: $676.00
Frequently bought together:

Description

Walker Filtration 20HP0175 Alpha 1" NPT alloy high pressure filter housing is perfect for upstream or downstream of your compressed air or gas dryers. These cast aluminum alloy compressed air filter housings remove up to 99.999% of contamination in your compressed air line. The advanced filter head design is optimized for flow performance and a low pressure drop.

Walker Filtration deep pleat filter elementAlpha deep pleated filter element media technology is long lasting and 99.999% efficient when tested in accordance with ISO 12500-3. Four filter element grades are available for removal of contaminants down to 5 micron, 1 micron, 0.01 micron, or an option for activated carbon filter media with 0.01 micron retention. The push-fit style filter elements make the Alpha 20HP0175 compressed air filter easy to service.

Walker Filtration's unique modular design allows you to upgrade in the future by coupling together particulate and coalescing filters for a solid combo attack at your compressed air particulates and moisture. Remove up to 99.999% of contaminants before or after your compressed air dryer without worrying about your pressure drop.

Filter Element Grades for Walker Filtration Alpha Compressed Air Filters

BROCHURE

View AllClose

Additional Information

Connection Size:
1" NPT
Flow Rate:
303 SCFM @ 300 PSIG
Inlet to Outlet:
5.00"
Height:
14.57"
Weight:
4.4 lbs
Maximum Operating Pressure:
300 PSIG
Operating Temperature:
34ºF - 248ºF
Filter Element Model:
E30621 (Grade)
Includes:
Differential Pressure Indicator and MDVE25 Manual Drain Valve
