Walker A30700 Alpha 2" NPT Compressed Air - 700 SCFM

(No reviews yet) Write a Review
SKU:
A30700
Availability:
Contact us for Availability

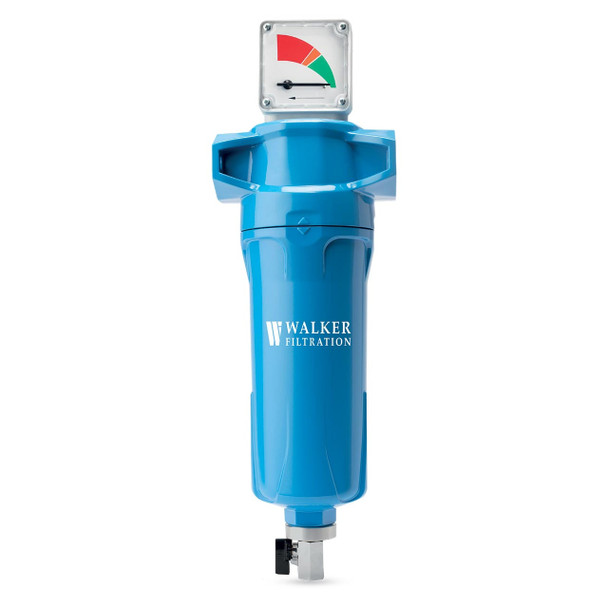

  • Walker Filtration Alpha A30700 2" compressed air filter housing for compressed air and gas
  • Internal design of Walker Filtration Alpha compressed air filter
  • Walker Alpha 2" compressed air duplex filters coupled together
Now: $1,431.00
Was: $1,626.00
Frequently bought together:

Description

Walker Filtration A30700 Alpha 2" NPT compressed air filter housing is perfect for upstream or downstream of your compressed air or gas dryers. These cast aluminum alloy compressed air filter housings remove up to 99.999% of contamination in your compressed air line. The advanced filter head design is optimized for flow performance and a low pressure drop.

Alpha deep pleated filter element media techology is long lasting and 99.999% efficient when tested in accordance with ISO 12500-3. Four filter element grades are available for removal of contaminants down to 5 micron, 1 micron, 0.01 micron, or an option for activated carbon filter media with 0.01 micron retention. The push-fit style filter elements make the Alpha A30700 compressed air filter easy to service.

Walker Filtration's unique modular design allows you to upgrade in the future by coupling together particulate and coalescing filters for a solid combo attack at your compressed air particulates and moisture. Remove up to 99.999% of contaminants from your compressed air without worrying about your pressure drop.

Filter Element Grades for Walker Filtration Alpha Compressed Air Filters

Walker Alpha Compressed Air Fitler SpecificationsView the Walker Filtration Alpha Compressed Air Filter Specifications

View AllClose

Additional Information

Connection Size:
2" NPT
Flow Rate:
700 SCFM @ 100 psig
Inlet to Outlet:
3.94"
Height:
27.87"
Weight:
12.1 lbs
Includes:
Differential Pressure Indicator and MDVE25 Manual Drain Valve
Maximum Operating Pressure:
300 PSIG
Operating Temperature:
34ºF - 248ºF
Filter Element Model:
E30850 (Grade)
View AllClose
