Walker Filtration
Walker A50HP151N Alloy High Pressure Filter Housing - 725 PSIG - 1 ½”
(No reviews yet)
Write a Review
- SKU:
- A50HP151N
- MPN:
- A50HP151N
Frequently bought together:
Description

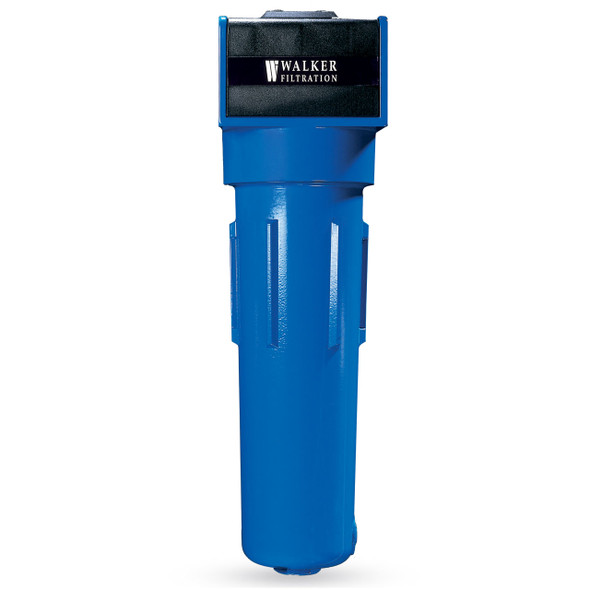

The Walker A50HP151N is an alloy-bodied compressed air and gas filter housing rated to 725 psig (50 barg), with a 1 ½” connection and a flow rating of 1015 SCFM.
Walker’s current high pressure range. The housing is the same across all grades — the element determines the filtration you get.
Replacement Elements
Takes the HP2512 element:
- HP2512X5 — 5 micron coalescing
- HP2512X1 — 1 micron coalescing
- HP2512XA — 0.01 micron coalescing
- HP2512AC — activated carbon, 0.01 micron
Installing After a Desiccant Dryer?
The same housing accepts the reverse-flow dust grades HP2512RX5, HP2512RX1, HP2512RAC.
View the Walker Alloy High Pressure Filter Datasheet
Datasheet
Additional Information
Pressure Rating: |
725 psig (50 barg) |
Connection: |
1 ½” |
Flow Rate: |
1015 SCFM |
Element Reference PN: |
HP2512 |
