Walker Filtration
Walker A50HP201N Alloy High Pressure Filter Housing - 725 PSIG - 2”
(No reviews yet)
Write a Review
- SKU:
- A50HP201N
- MPN:
- A50HP201N
Frequently bought together:
Description

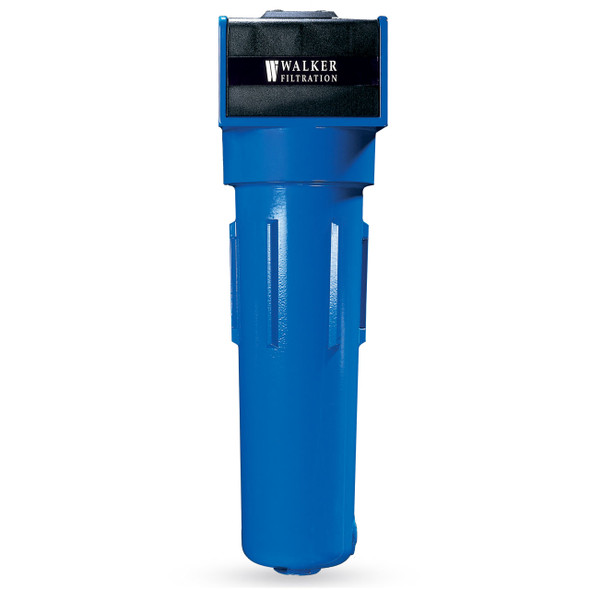

The Walker A50HP201N is an alloy-bodied compressed air and gas filter housing rated to 725 psig (50 barg), with a 2” connection and a flow rating of 1882 SCFM.
Walker’s current high pressure range. The housing is the same across all grades — the element determines the filtration you get.
Replacement Elements
Takes the HP2520 element:
- HP2520X5 — 5 micron coalescing
- HP2520X1 — 1 micron coalescing
- HP2520XA — 0.01 micron coalescing
- HP2520AC — activated carbon, 0.01 micron
Installing After a Desiccant Dryer?
The same housing accepts the reverse-flow dust grades HP2520RX5, HP2520RX1, HP2520RAC.
View the Walker Alloy High Pressure Filter Datasheet
Datasheet
Additional Information
Pressure Rating: |
725 psig (50 barg) |
Connection: |
2” |
Flow Rate: |
1882 SCFM |
Element Reference PN: |
HP2520 |
