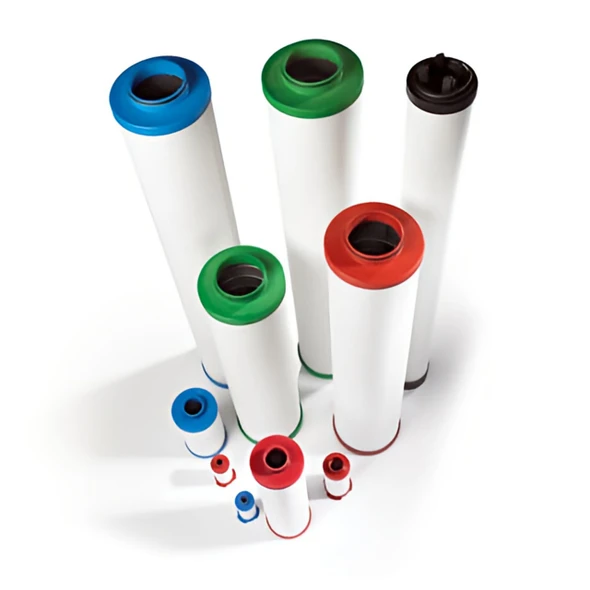

Walker E1172X5 Compressed Air Filter Element – 5 Micron Coalescing (Grade X5)

The Walker E1172X5 is a genuine Walker Filtration 5 Micron Coalescing replacement coalescing filter element for PRO XF series compressed air and gas filter housings. Deep-pleated media delivers 99.999% efficiency tested in accordance with ISO 12500-3, with a low differential pressure that keeps running cost down over the life of the element.

5 Micron Coalescing — Grade X5

Rated for 5 micron removal. Push-fit element design makes servicing quick and clean.

Replacement & Maintenance

Replace every 12 months, or sooner if the differential pressure indicator signals, to maintain rated air quality and minimize energy cost. Genuine Walker Filtration element — part number E1172X5.

Which Housings Take This Element?

The E1172X5 is the 5 micron coalescing element for these Walker housings. The housing is the same across grades — only the element changes:

• XF371 — 3” — 1500 SCFM
• XF371F — 3" flanged — 1500 SCFM
• XF472F — 4" flanged — 3000 SCFM

It also fits the following Walker housings, which we supply to order — contact us for pricing:

• XFM071 — N/A — 1500 SCFM
• XFM072 — N/A — 3000 SCFM

View the Walker PRO XF Compressed Air Filter Brochure
