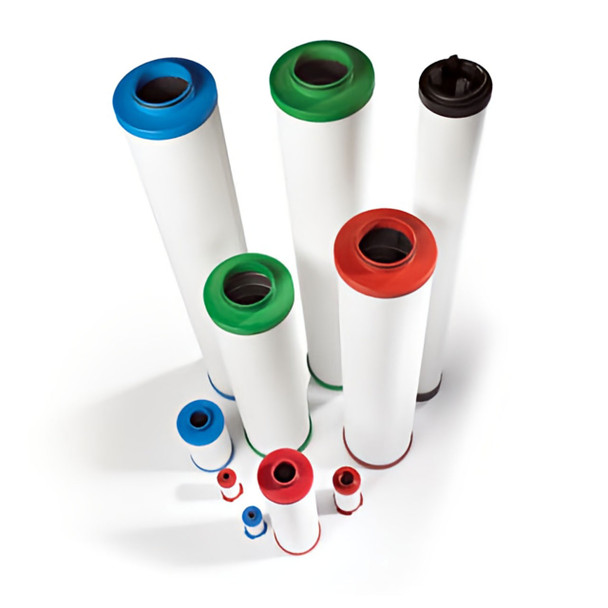

Walker E30612RXA Compressed Air Filter Element – 0.01 Micron Dust (Reverse Flow) (Grade RXA)

The Walker E30612RXA is a genuine Walker Filtration 0.01 Micron Dust (Reverse Flow) replacement dust filter element for Alpha series compressed air and gas filter housings. Deep-pleated media delivers 99.999% efficiency tested in accordance with ISO 12500-3, with a low differential pressure that keeps running cost down over the life of the element.

0.01 Micron Dust (Reverse Flow) — Grade RXA

Rated for 0.01 micron removal. Installed in reverse-flow orientation downstream of a desiccant dryer to capture desiccant fines and particulate.

Replacement & Maintenance

Replace every 12 months, or sooner if the differential pressure indicator signals, to maintain rated air quality and minimize energy cost. Genuine Walker Filtration element — part number E30612RXA.

Which Housings Take This Element?

The E30612RXA is the 0.01 micron dust element for these Walker housings. The housing is the same across grades — only the element changes:

• A30070 — 1/2" — 70 SCFM
• A30085 — 3/4" — 85 SCFM
• A30105 — 1" — 105 SCFM

View the Walker Alpha Dust Filter Datasheet
