Walker PD015 PROSFD Heatless Desiccant Air Dryer - 15 SCFM

The Walker Filtration PD015 PROSFD heatless regenerative compressed air dryer can operate up to 15 SCFM providing a highly efficient supply of dry and clean air. Featuring a standard -40°F pressure dew point, with optional -100°F dew point, this heatless desiccant dryer is engineered to meet air purity class ISO 8753-1: 2010.

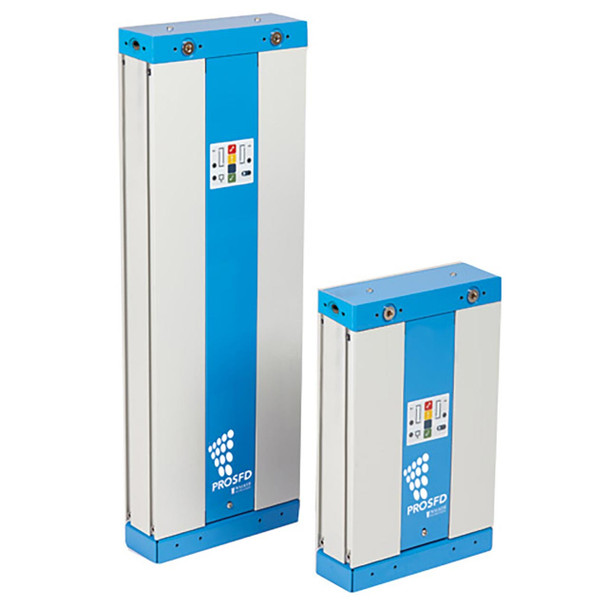

The compact size of the Walker PROSFD air dryer enables simple and versatile installation in either horizontal or vertical position. Desiccant cartridges can be simply replaced without excessive downtime.

The Walker PD015 heatless desiccant dryer includes desiccant cartridges and a 0.01 micron coalescing filter as standard. The unique desiccant cartridges incorporate a 1 micron dust filter integrated into the desiccant cartridge. Some of the PROSFD options include Pre Filter and After Filters, high performing desiccant cartridges, and a dewpoint sensor.

• Multi-ported manifold and compact design allows for flexible installation
• Controlled desiccant bed geometry ensures consistent and reliable dewpoint performance
• Anodized aluminum extrusions provide corrosion protection
• Desiccant columns can be removed for quick and efficient change out
• PD004 to PD035 feature 232 psig (16 barg) standard operating pressure
• Intelligent LED controller with built-in energy management as standard
• Internal Walker Filtration designed Silencer reduces noise levels below 85dBA
• Includes 0.01 micron Walker A30032XA coalescing pre-filter housing

With a compact design and multi-ported manifold, the PROSFD dryer can be installed vertically and horizontally, providing a flexible solution to your compressed air drying needs. This highly reliable, high efficiency range of dryers features built-in energy management, allowing the purge flow to be isolated during periods of low demand for efficient use of compressed air. Whatever your application requirement, The Walker Filtration PROSFD air dryer delivers a compressed air drying solution you can trust.

View the Walker Filtration PROSFD Desiccant Dryer Literature

Technical Notes:

1. PROSFD features easy removable desiccant cartridges with integral 1 micron dust filter.
2. For additional protection, Walker Filtration recommends installing an optional RX1 dust filter to the outlet.
3. All PROSFD models are supplied together with an 0.01 micron XA pre-filter housing.
4. Additional filtration, including a water separator, is recommended for high loaded inlet conditions.
5. Standard models operate at 100 psig (7 barg); for other pressures, please specify at time of order.
