KELTEC KRAD-150 Non-cycling Refrigerated Air Dryer - 150 CFM

(No reviews yet) Write a Review
SKU:
KRAD-150

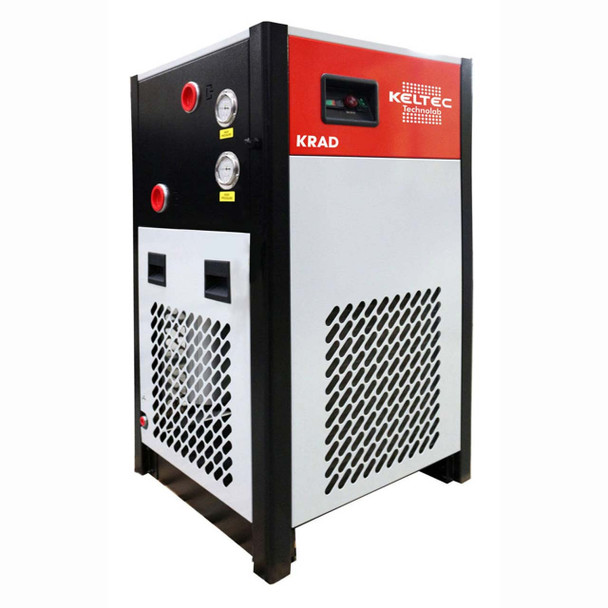

  • Keltec KRAD-150 refrigerated air dryer
  • Keltec KRAD refrigerated air dryer control. Black with LED.
Now: $3,491.00
Was: $4,420.00
Frequently bought together:

Description

The Keltec KRAD-150 refrigerated air dryer has a 150 CFM capacity, max working pressure of 230 PSI, and 1-1/2" NPT connections. Keltec KRAD refrigerated air dryers efficiently remove condensate and particulate contamination resulting in extremely dry and clean compressed air.

  • Low Dew Point: 38°F pressure dew point
  • Low Pressure Drop: Pressure Drop is less than 3 PSI greatly reducing energy costs.
  • Tropical Conditions: Operation at 140 F inlet temperatures, thanks to R134a refrigerant, with no problems.
  • Compact Design: Compared to competitive units, every square inch inside the dryer is used providing a super small footprint.
  • Easy Access: Cooling components can be easily reached in seconds with removable panels.
  • Easy Ducting: Condensers are located at the top for easy ducting.
  • Digital Interface Control: Eight temperature sensors provide complete air dryer monitoring.
  • Aluminum Plate Heat Exchanger: Provides very low pressure drop (2 PSI) and very efficient 38°F real pressure dew point.
  • Integrated Dual Filter System: Filters the compressed air to 0.01 micron.
  • Clean Wiring: No wires inside the refrigerant side of the air dryer. Outside access to electrical with conduits.
  • Pressure Switches: Pressure switched are installed in the electrical panel for easy access.
  • Extra Ball Valves: Extra ball valves brazed into refriferant circuit to simplify parts replacement and eliminate chance of  releasing refrigerant gas.
  • Two Year Warranty

Benefit from less downtime, reduced maintenance, and seriously dry compressed air with the Keltec KRAD-150 refrigerated compressed air dryer.

Keltec KRAD refrigerated air dryer literatureView the Keltec KRAD Refrigerated Air Dryer Sizing & Specifications

Keltec KRAD refrigerated air dryer IOMView the KRAD Air Dryer Installation and Operation Manual

SIZING & SPECIFICATIONS

OPERATION MANUAL

View AllClose

Additional Information

Flow Rate:
150 SCFM
Connection Size:
1-1/2" NPT
Dew Point:
38°F pressure dew point
Maximum Pressure:
230 PSI
Pressure Drop:
Less than 3 PSI
Maximum Ambient Temperature:
122°F
Maximum Inlet Temperature:
140°F
Voltage:
230/1/60
Replacement Filter Kit:
ADFK3
