KELTEC KRAD-200 Non-cycling Refrigerated Air Dryer - 200 CFM

(No reviews yet) Write a Review
SKU:
KRAD-200

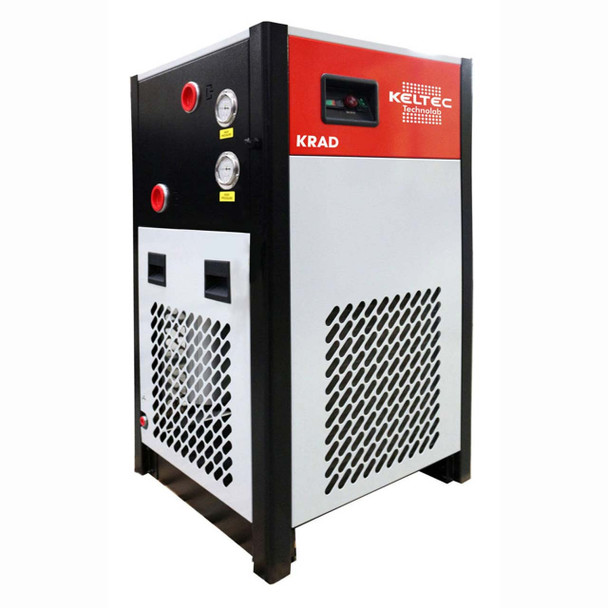

  • Keltec KRAD-200 refrigerated air dryer
  • Keltec KRAD refrigerated air dryer control. Black with LED.
Now: $5,080.00
Was: $6,430.00
Frequently bought together:

Description

The Keltec KRAD-200 refrigerated air dryer has a 200 CFM capacity, max working pressure of 230 PSI, and 2" NPT connections. Keltec KRAD refrigerated air dryers efficiently remove condensate and particulate contamination resulting in extremely dry and clean compressed air.

  • Low Dew Point: 38°F pressure dew point
  • Low Pressure Drop: Pressure Drop is less than 3 PSI greatly reducing energy costs.
  • Tropical Conditions: Operation at 140 F inlet temperatures, thanks to R134a refrigerant, with no problems.
  • Compact Design: Compared to competitive units, every square inch inside the dryer is used providing a super small footprint.
  • Easy Access: Cooling components can be easily reached in seconds with removable panels.
  • Easy Ducting: Condensers are located at the top for easy ducting.
  • Digital Interface Control: Eight temperature sensors provide complete air dryer monitoring.
  • Aluminum Plate Heat Exchanger: Provides very low pressure drop (2 PSI) and very efficient 38°F real pressure dew point.
  • Integrated Dual Filter System: Filters the compressed air to 0.01 micron.
  • Clean Wiring: No wires inside the refrigerant side of the air dryer. Outside access to electrical with conduits.
  • Pressure Switches: Pressure switched are installed in the electrical panel for easy access.
  • Extra Ball Valves: Extra ball valves brazed into refriferant circuit to simplify parts replacement and eliminate chance of  releasing refrigerant gas.
  • Two Year Warranty

Benefit from less downtime, reduced maintenance, and seriously dry compressed air with the Keltec KRAD-200 refrigerated compressed air dryer.

Keltec KRAD refrigerated air dryer literatureView the Keltec KRAD Refrigerated Air Dryer Sizing & Specifications

Keltec KRAD refrigerated air dryer IOMView the KRAD Air Dryer Installation and Operation Manual

SIZING & SPECIFICATIONS

OPERATION MANUAL

View AllClose

Additional Information

Flow Rate:
200 SCFM
Connection Size:
2" NPT
Dew Point:
38°F pressure dew point
Maximum Pressure:
230 PSI
Pressure Drop:
Less than 3 PSI
Maximum Ambient Temperature:
122°F
Maximum Inlet Temperature:
140°F
Voltage:
230/1/60
Replacement Filter Kit:
ADFK4
