Samuel

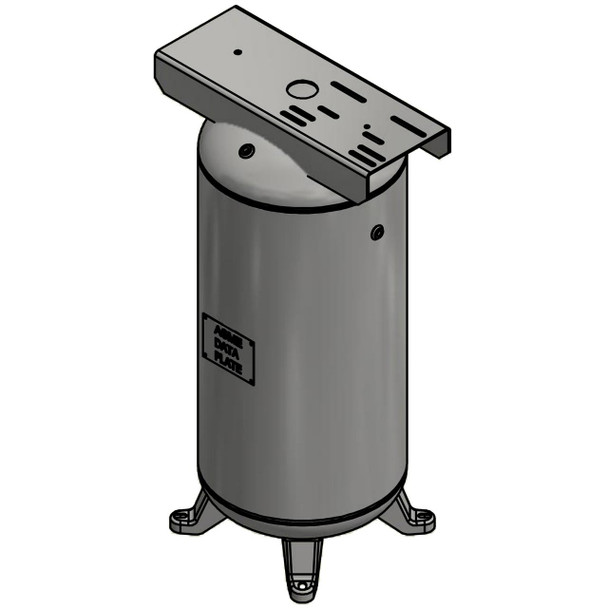

60 Gallon Vertical Air Receiver Tank w/ Top Plate - Samuel A10044
(No reviews yet)
Write a Review
- SKU:
- A10044
- Availability:
- IN STOCK
Frequently bought together:
Description
The Samuel 60 Gallon Vertical Air Receiver with Top Plate is a proven workhorse in the compressed air industry. Made in the USA by one of the largest manufacturers of ASME Air Receivers: Samuel / SPVG / Steel Fab.
- Samuel A10044
air receiver tank is 60 Gallon, 200 PSI and includes a 13" x 30" Top Plate. 20" x 48" and 173 pounds.
The standard primer is a universal water based enamel for the A10044 vertical air receiver. We offer optional adders for coatings which adds 2 - 3 weeks to delivery. Please contact us for special options such as FDA Approved Linings and more.
Help your air compressor run smoothly and efficiently with rugged air receiver tank storage for your compressed air system.
View the Samuel Compressed Air Tank Literature
OPTIONS
Samuel / SteelFab offers the following coating options for air receiver tanks.
- Exterior Primer (standard with purchase)
- Powder Interior and Exterior
- Enamel Exterior
- Epoxy Interior
- Premium Galvanized Interior and Exterior
- FDA or NSF Approved Potable Water Interior Lining
Notes:
- Standard primer - universal water based Alkyd enamel
- Powder Coating in following colors only: Gray (RAL 7011), White, Black, Blue (RAL 5015)
- Interior epoxy, where offered: Gray only
- Exterior enamel in following colors: Gray, White, Black, Blue
- FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications.
- Potable water lining NSF approved to Standard 61.
DRAWING
BROCHURE
Additional Information
Capacity: |
60 Gallons |
Size: |
20" x 48" |
Maximum Pressure: |
200 PSI @ 400F |
Maximum Temperature: |
400F |
Standard Finish: |
Universal Water Based Primer |
ASME: |
Latest Edition of Section VIII DIV 1 ASME Code |
Weight: |
173 |
Includes: |
Top Plate |
